Heavy-duty "V"- idlers
Heavy-duty "V"- idlers
Contain a high speed bearing with double sealed sides.
For heavier load applications.
Heavy Duty V Idler 62-4530
Add to cart
STE280-339
REPLACES OEM
Murray
20613, 420613, 420613MA, 91178
Simplicity
668827, 668827SM
Toro
2-4463, 3-4243, 62-4530, 7-0823
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
3"
C:
1/2"
D:
3/4"
E:
1/4"
F:
1/4"
Heavy Duty
TRUE
Height
3/4"
ID
1/2"
Made By
An OEM Supplier
Material
Metal
OD
3"
Heavy Duty V Idler AM115682
Add to cart
STE280-127
REPLACES OEM
John Deere
24H1682, AM103019, AM103287, AM115682, AM32672, AM37321
FITS MODELS
John Deere
65, 66, 108-185, R70, R72, RX63, S80 and S82
SPECS
23/32" offset hub
For explanation of letters, refer to the drawing at top of page.
A:
3 1/16"
C:
3/8"
D:
3/4"
E:
15/32"
F:
3/16"
H:
9/32"
Heavy Duty
TRUE
Height
3/4"
ID
3/8"
Made By
An OEM Supplier
Material
Metal
OD
3 1/16"
Heavy Duty V Idler 7018247YP
Add to cart
STE280-347
REPLACES OEM
Murray
23211, 23211MA
Snapper
1-8274, 7018247YP, 7018274
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
3 3/4"
C:
1/2"
D:
1"
E:
1/4"
F:
1/4"
Heavy Duty
TRUE
Height
1"
ID
1/2"
Made By
An OEM Supplier
Material
Metal
OD
3 3/4"
Heavy Duty V Idler AM118447
Add to cart
STE280-309
REPLACES OEM
John Deere
AM118447
FITS MODELS
John Deere
737, 757, 777 and 797 ZTraks
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
3 3/4"
C:
11/16"
D:
7/8"
E:
1/4"
F:
1/4"
Heavy Duty
TRUE
Height
7/8"
ID
11/16"
Made By
An OEM Supplier
Material
Metal
OD
3 3/4"
Heavy Duty V Idler 756-1208
Add to cart
STE280-362
REPLACES OEM
John Deere
AM106564, AM133756, AM33574, PT8761
Lawn-Boy
703715
MTD
1726660, 756-0226, 756-0293, 756-0293A, 756-0487, 756-1208
Murray
44280, 6826
Snapper
1-1029, 7011029, 7011029YP
Toro
24445, 52-4580, 703715, 7451, 95-7668, 99-5678
FITS MODELS
Toro
Groundsmaster 217 and 200 series with 52" deck
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
4"
C:
3/8"
D:
3/4"
E:
1/2"
F:
11/32"
H:
1/8"
Heavy Duty
TRUE
Height
3/4"
ID
3/8"
Made By
An OEM Supplier
Material
Metal
OD
4"
Heavy Duty V Iidler 7325200
Add to cart
7325200
REPLACES OEM
Bunton
PLO786
Gravely
7325200
Honda
76131-VE4-003
FITS MODELS
Bunton
32", 36", 48" and 52" walk behinds; 36" and 48" V decks
Exmark
Turf Tracer Hydro with Floating Decks Serial No.190,000 - higher
Gravely
Pro Master 250 Z and 260 Z
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
4"
C:
3/8"
D:
1 1/8"
E:
5/8"
F:
7/32"
H:
1/2"
Heavy Duty
TRUE
Height
1 1/8"
ID
3/8"
Made By
An OEM Supplier
Material
Metal
OD
4"
Heavy Duty V Idler AM134502
Add to cart
STE280-842
REPLACES OEM
John Deere
AM134502, AM138080, AUC11238
FITS MODELS
John Deere
X300
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
4"
C:
5/16"
D:
1 1/4"
E:
1/2"
Height
1 1/4"
ID
5/16"
Material
Plastic
OD
4"
Heavy Duty V Idler 532146763
Add to cart
STE280-714
REPLACES OEM
AYP
146763, 173902
Husqvarna
146763, 173902, 532146763
FITS MODELS
Husqvarna
Most CT 126, CT 130, CT 141, CTH 126, CTH 141, CTH 182T, CTH 2642, GTH 200, GTVH 200, GTVH 205. LT 126, LT 2213, LTH 126, SRD 17530, YTH 180, YTHK 180, and TC 130 series lawn tractors
Poulan
12597RB, PO10530LT, PO12530LT, PO12597RB, and PXT12530 series lawn tractors
SPECS
For explanation of letters, refer to the drawing by clicking on More Info
A:
4 1/4"
C:
3/8"
D:
7/8"
E:
3/16"
H:
5/16"
Heavy Duty
TRUE
Height
7/8"
ID
3/8"
Material
Metal
OD
4 1/4"

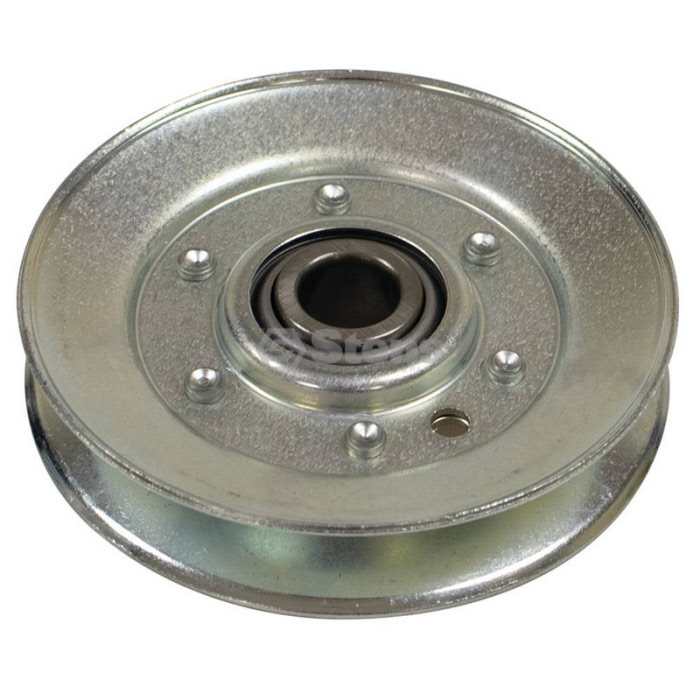

Heavy Duty V Idler 30234
Add to cart
STE280-731
REPLACES OEM
Dixie Chopper
30234
FITS MODELS
Dixie Chopper
42"-72" decks, 1999-2008
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
4 1/4"
C:
5/8"
D:
7/8"
E:
1/4"
F:
1/4"
Heavy Duty
TRUE
Height
7/8"
ID
5/8"
Made By
An OEM Supplier
Material
Metal
OD
4 1/4"
Heavy Duty V Idler 65-5940
Add to cart
STE280-333
Ref. No. 5 above
REPLACES OEM
Toro
64-5940, 65-5940
FITS MODELS
Toro
100 series with 44"-48" decks and 200 series with 52"-60" decks
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
4 3/8"
C:
5/8"
D:
1"
E:
3/16"
F:
13/32"
H:
1/16"
Heavy Duty
TRUE
Height
1"
ID
5/8"
Material
Metal
OD
4 3/8"
Heavy Duty V Idler 532 10 13-44
Add to cart
STE275-272
REPLACES OEM
AYP
101344L, 532101344
Bunton
PL8540A
Encore
483025
Husqvarna
532101344
Scag
48181
FITS MODELS
Exmark
Metro and Viking; 36", 48" and 52" dekcs
Great Dane
Chariot Sr. Deck; 52" and 61" decks
Scag
Cheetah, Sabre Tooth Tiger, Turf Tiger, V-Ride and Wildcat
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
5"
C:
3/8"
D:
7/8"
F:
5/16"
H:
1/4"
Heavy Duty
TRUE
Height
7/8"
ID
3/8"
Material
Metal
OD
5"
Heavy Duty V Idler 1-603805
Add to cart
STE280-866
REPLACES OEM
Exmark
1-603805, 603805, 99-4638
Toro
1-603805, 603805, 99-4638
FITS MODELS
Exmark
52", 60" and 72" Lazer Z Triton decks, Serial No. 600,000 and higher; Turf Tracer hydro with floating decks, Serial No. 190,000 and higher; 52", 60" and 72" Lazer Z deck group, Serial No. 102,000-370,000
Toro
Z 250's Z Master 742XX Series, with 52", 62" and 72" decks, 1999-2021; 74260 Z 597 with 60" and 72" decks; Z 500's Z Master, with 60" and 72" decks, 2004 and newer
SPECS
Double row of bearings with double sealed sides
For explanation of letters, refer to the drawing at top of page.
For standard applications
A:
5"
C:
5/8"
D:
1 1/16"
E:
1/2"
F:
7/16"
Heavy Duty
TRUE
Height
1 1/16"
ID
5/8"
Made By
An OEM Supplier
Material
Metal
OD
5"
Heavy Duty V Idler AM136357
Add to cart
STE275-891
REPLACES OEM
John Deere
AM135957, AM136357
FITS MODELS
John Deere
X300 and X304
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
5"
C:
11/16"
D:
7/8"
E:
1/4"
F:
1/4"
Heavy Duty
TRUE
Height
7/8"
ID
11/16"
Made By
An OEM Supplier
Material
Metal
OD
Heavy Duty V Idler 956-3045A
Add to cart
STE280-386
EPLACES OEM
Ariens
07340100
Cub Cadet
956-3045, 956-3045A
MTD
956-3045
FITS MODELS
Cub Cadet
GT2000, GT2100, GT2542, GT2544, GT2550, GT2554, LT2042, LT2138, LT2180 and Tank
SPECS
For explanation of letters, refer to the drawing at top of page.
A:
5 1/16"
C:
3/8"
D:
5/16"
E:
1 1/8"
F:
3/8"
H:
7/32"
Heavy Duty
TRUE
Height
1 1/8"
ID
3/8"
Made By
An OEM Supplier
Material
Metal
OD
5 1/16"
Heavy Duty V Idler 1-633166
Add to cart
STE280-870
REPLACES OEM
Exmark
1-633166, 633166
Toro
1-633166, 633166
FITS MODELS
Exmark
Lazer Z, Serial No. 102,000-370,000, with 52", 60" and 72" decks
Toro
Z 500's Z Master, 2004 and newer, with 60" and 72" decks; Z 250's Z Master 742XX series, 1999-2007, with 52", 60" and 72" decks
SPECS
For explanation of letters, refer to the drawing at top of page.
Pump drive
A:
6"
C:
5/8"
D:
1 1/8"
E:
1/2"
F:
1/2"
Heavy Duty
TRUE
Height
1 1/8"
ID
5/8"
Made By
An OEM Supplier
Material
Metal
OD
6"
!
