Serial Number 59796 - 62749

Use diagram numbers to locate items listed below.  For a larger image click on the link below.

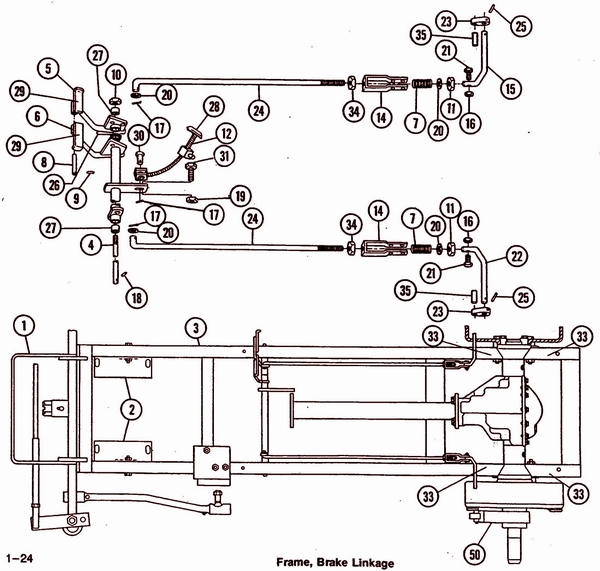

Product Diagram

Click on the image to enlarge.

Item # 2

Add to cart
09-0015
Bracket - Engine, Kohler pair R & L

Item # 4

Add to cart
01-6317
Shaft - Foot brake, 16-5/8" Hyd. lift

Item # 7

Add to cart
83-1032
Spring - Compression, 2-3/4" long

Item # 9

Add to cart
84-4009
Pin - Roll, 7/32" dia., 1-1/4" long

Item # 10

Add to cart
84-0130
Nut - Hex lock, 1/2" NF

Item # 11

Add to cart
84-0110
Nut - Hex lock, 3/8" NF

Item # 14

Add to cart
01-2510
Clevis - Brake, 5-5/8" long

Item # 15

Add to cart
01-8717
Shaft - Brake actuating, right

Item # 16

Add to cart
84-0010
Nut - Hex lock, 1/4" NC

Item # 17

Add to cart
84-4013
Key - Cotter, 3/32" dia., 5/8" long

Item # 18

Add to cart
84-4003
Pin - Drive, 7/32" dia., 1" long

Item # 19

Add to cart
84-0110
Nut - Hex lock, 3/8" NF

Item # 20

Add to cart
84-3037
Washer - Flat, 3/8" SAE

Item # 21

Add to cart
84-2350
Screw - Hex hd cap, 1/4" NC x 1-1/4" lg.
