Body, Frame and Steering
>
Frame, Brake Linkage, Front Hitch
>
Serial Number 52590 - 59693
Serial Number 52590 - 59693
Use diagram numbers to locate items listed below. For a larger image click on the link below.

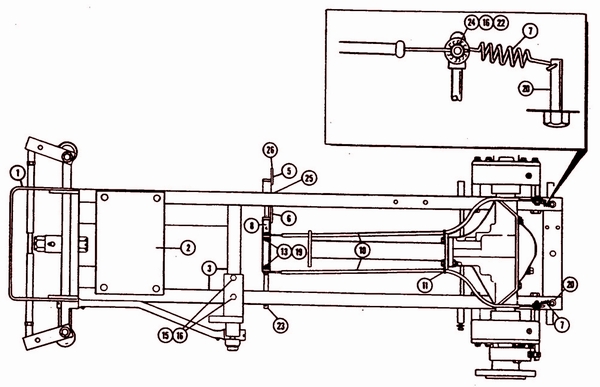

Product Diagram
Click on the image to enlarge.
Item # 7
Add to cart
83-0022
Spring - Tension, 5-9/16" long
Item # 11
02-0535
Bracket - Brake cable NLA
Replaced by 84-2040
Add to cart
84-2040
Screw - Hex head cap, 5/16" NF x 7/8"
Item # 15
Add to cart
84-2220
Screw - Hex head cap, 7/16" NF x 3-1/4"
Item # 16
Add to cart
84-0120
Nut - Hex lock, 7/16" NF
Item # 19
Add to cart
84-0100
Nut - Hex lock, 5/16" NF
Item # 20
Add to cart
84-1121
Bolt - Blank, 7/16" x 3"
Item # 23
Add to cart
84-4002
Pin - Drive, 7/32" dia. x 1-1/4" lg.
Item # 24
Add to cart
84-3060
Washer - Flat, 7/16"
Item # 25
03-0913
Lever - Parking brake
No Longer Available
Item # 26
Add to cart
03-6320
Pad - Grit, 2" x 2-3/4"
!
