Power King / Snapper
>
Body, Frame and Steering
>
Steering
>
1600 / 2400
1600 / 2400

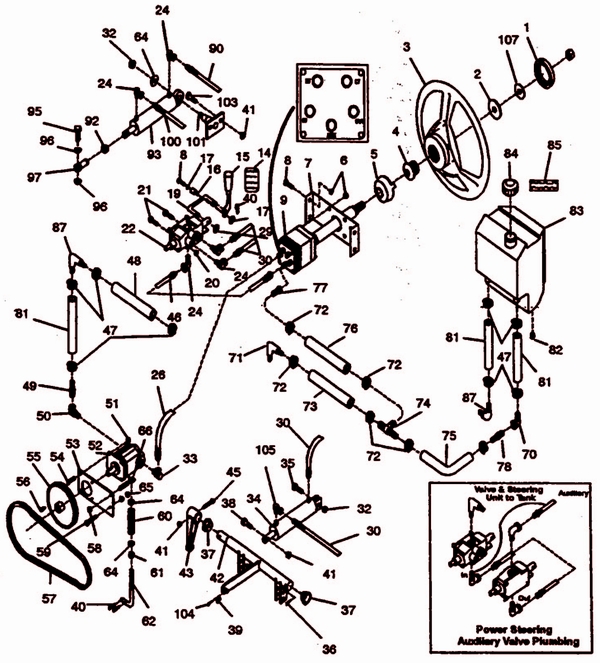

Use diagram numbers to locate items listed below. For a larger image click on the link below.
Click Image To Enlarge Picture Above
Add to cart
Item # 1
Add to cart
03-8716
Wheel - Cap steering
Item # 2
Add to cart
03-8715
Washer 2.25 x 21/32
Replaced by 103941
Add to cart
103941
Wheel - 14" Steering rim
Item # 4
Add to cart
03-0314
Adapter 3/4-40 Spline
Item # 5
Add to cart
03-8717
Wheel - Bottom closure
Item # 6
Add to cart
84-0100
Nut 5/16" NF hex lock
Item # 7
Add to cart
01-0527
Bracket - Steering unit
NO LONGER AVAILABLE
Item # 8
Add to cart
84-2010
Screw 5/16" NF x 1/2"
Item # 9
01-2612
No Longer Available
Gear - Steering unit
Item # 14
98-6959
No Longer Available
Decal - Hydraulic lift control
Item # 15
Add to cart
23-9013
Handle - See valve
Item # 16
Add to cart
23-6802
Stud - Pivot hydraulic valve
Item # 17
Add to cart
214254
Washer 5/16", flat
Item # 19
Add to cart
23-6701
Rod 1/4" dia. x 2.18" lg.
