1-33

Serial Number 43827 - 59693

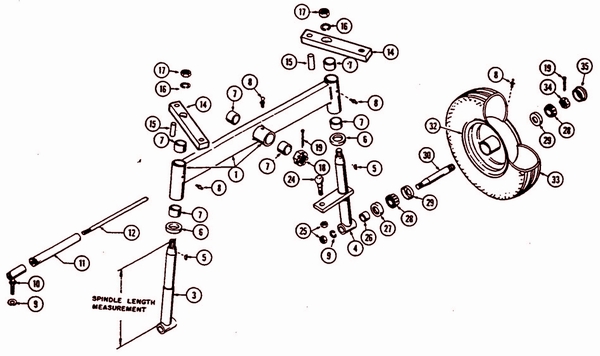

Use diagram numbers to locate items listed below.  For a larger image click on the link below.

Click Image To Enlarge Picture Above

Add to cart

Item # 1

Add to cart
01-0211
Front wheel support bar assembly - w/bushings

Item # 3

Add to cart
02-9102
Spindle  12-3/4" lg. 8" & 16" wheels, RH

Item # 4

Add to cart
02-9103
Spindle  12-3/4" lg. w/4" arm, 8" & 16" wheels, RH

Item # 5

Add to cart
84-4061
Key - Woodruff

Item # 6

Add to cart
80-0024
Bearing - Thrust

Item # 7

Add to cart
80-0013
Bushing  1-1/8" x 1-3/8" o.d. x 1" lg.

Item # 8

Add to cart
03-2102
Fitting - Grease, 1/4"-28 short

Item # 9

Add to cart
84-3110
Washer - Lock, 1/2" regular

Item # 10

Add to cart
03-4107
Knuckle - Tie rod, 1/2" -20 threads

Item # 11

Add to cart
03-1010
Casing - Tie rod support

Item # 12

Add to cart
01-0910
Tie rod  28" long

Item # 14

Add to cart
03-4704
Link - Drag, back stop style, 1" x 1-1/2" x 7-1/4" lg.

Item # 15

Add to cart
03-6305
Pin - Steering stop, 1/2" x 2-1/8"

Item # 16

Add to cart
84-3050
Washer - Lock, 3/4" thin
