Power King / Snapper
>
Body, Frame and Steering
>
Front End, Wheels and Tie Rods
>
Serial Number 62750 - 65131
Serial Number 62750 - 65131

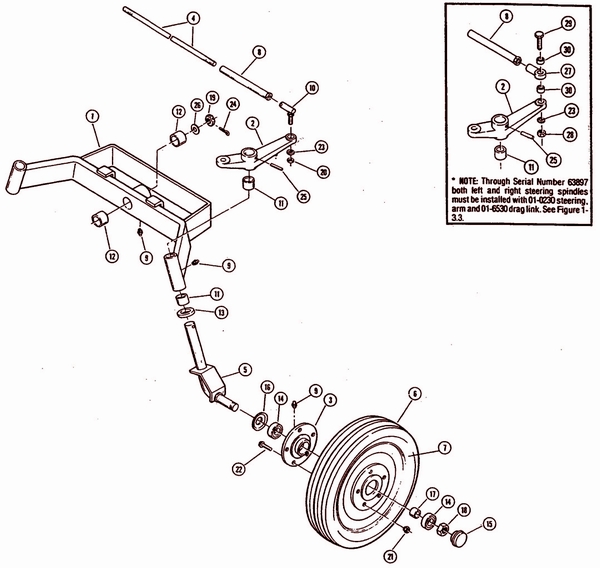

Use diagram numbers to locate items listed below. For a larger image click on the link below.
Click Image To Enlarge Picture Above
Add to cart
Item # 1
Add to cart
01-0212
Bar - Support, front
Item # 2
Add to cart
01-0220
Arm - Steering spindle, right side
Item # (2)
Add to cart
01-0221
Arm - steering spindle, left side
Item # 3
Add to cart
01-2920
Hub - Front wheel without ball bearing
Item # 4
Add to cart
01-0910
Rod - Tie, 1/2" dia. x 27" long
Item # 5
Add to cart
01-6817
Spindle - Front wheel, 1600 series
Item # (5)
Add to cart
01-6825
Spindle - Front wheel, 2400 series
Item # 6
Add to cart
01-7530
Tire & tube 4.0-12, front wheel
Item # 7
Add to cart
01-8708
Wheel - Front, for 4.0-12 tire
Item # (7)
Add to cart
01-7532
Wheel & tire - Front, 8.0-10
Item # 9
Add to cart
03-2102
Fitting - Grease, 1/4" -28 short
Item # 10
Add to cart
03-4107
Knuckle - Rod end, 1/2" NF
Item # 11
Add to cart
80-0013
Bushing 1-1/8" i.d. x 1-3/8" o.d. x 1"
Item # 12
Add to cart
80-0019
Bushing - Sleeve, 1-1/2" i.d. x 1" long
